RANGER is dedicated to a partnership of engineering capability and proficient manufacturing, delivering and servicing its products around the globe.
A specialized valve supplier, RANGER has developed a wide-range of high-quality field-tested valve products for many industrial applications.
With a focus on quality valve products, RANGER has developed a rigorous quality control program to ensure consistency and repeatability.
RANGER is a specialized supplier of API 6D, API 600, API 6A, and API 16C valves and flow control components, including industrial valves and wellhead equipment. RANGER also manufactures a wide range of specialty valves for a variety of applications and industries. RANGER’s products are field tested and specified by a range of international as well as regional end users, engineering companies, and construction companies.
An overview of RANGER’s wide range of valves by generic category. For a more specific listing, please click here.

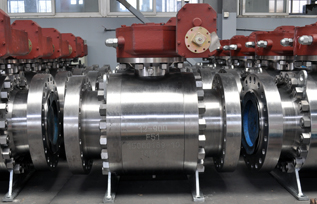

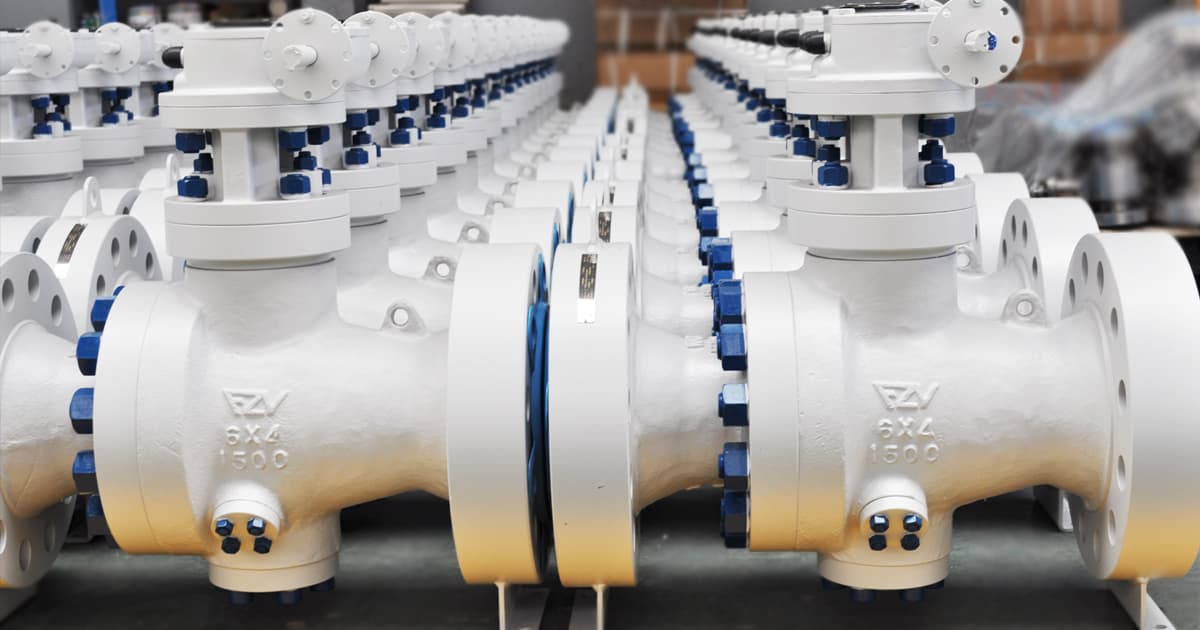

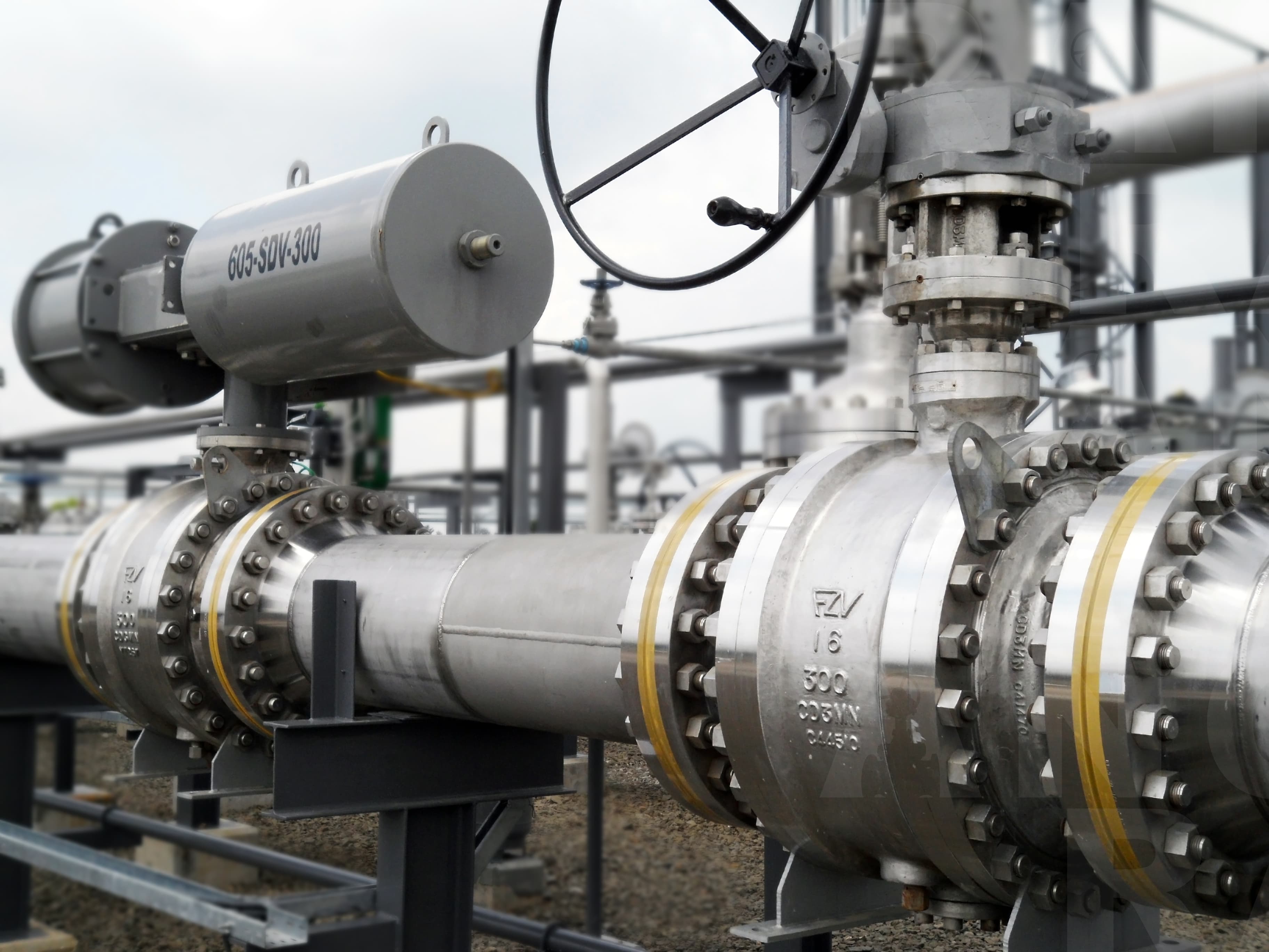

Ball Valve | Floating Ball Valve, Trunnion Mounted Ball Valve, Fully Welded Ball Valve, Top Entry Ball Valve |
---|---|

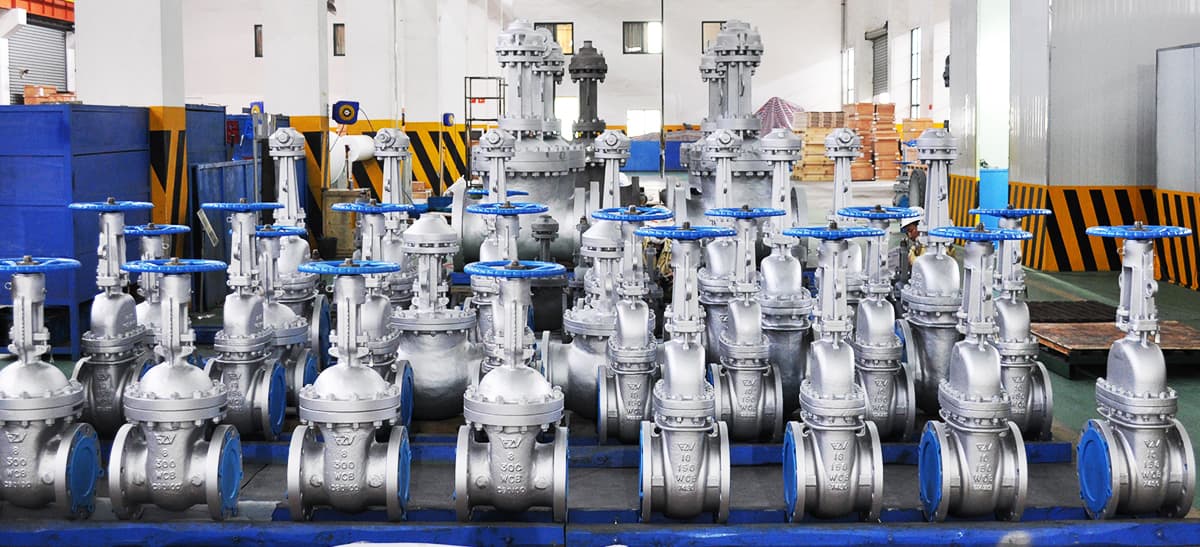

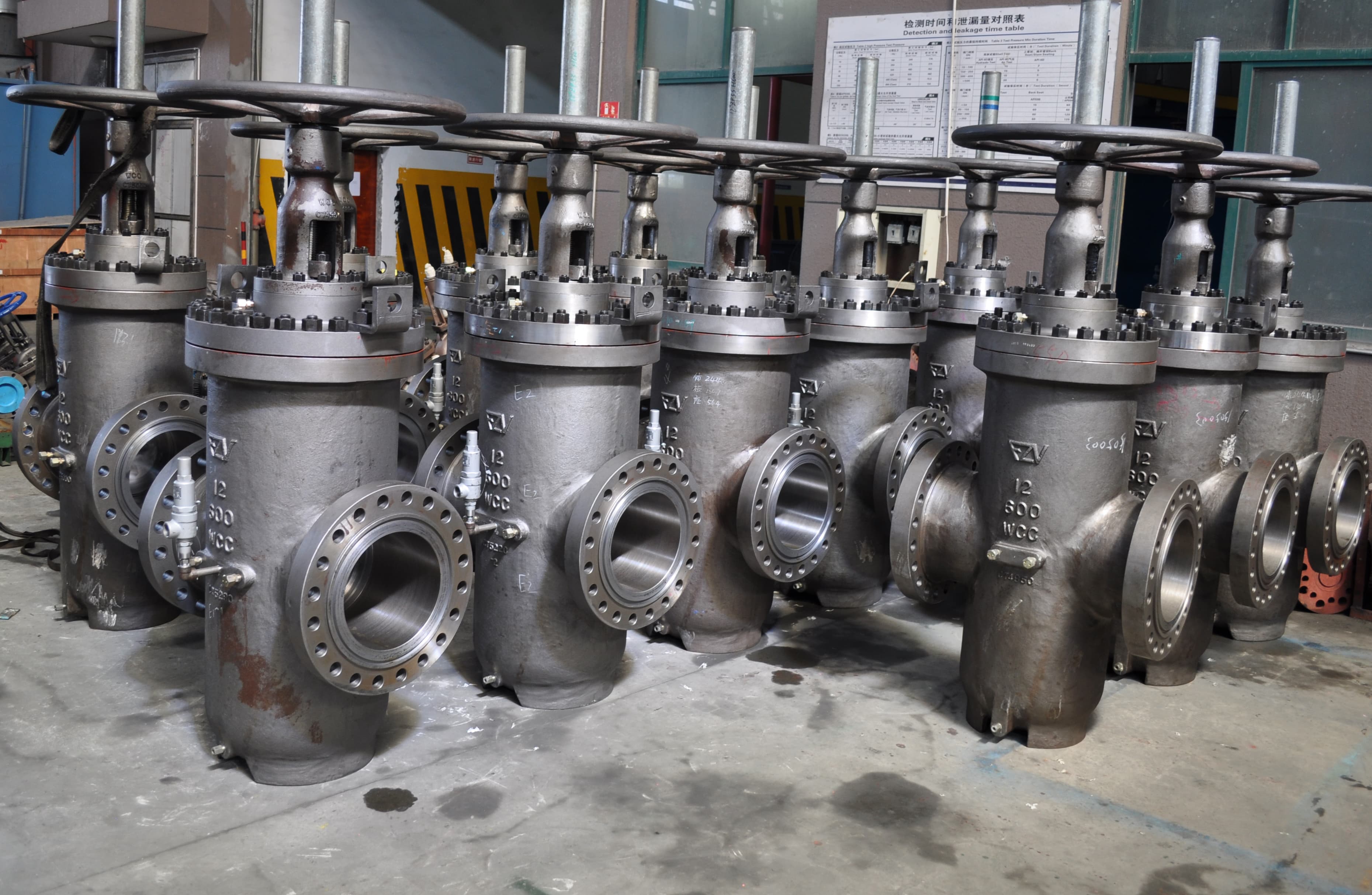

Gate Valve | Slab Gate Valve, Wedge Gate Valve, Pressure Seal Gate Valve |

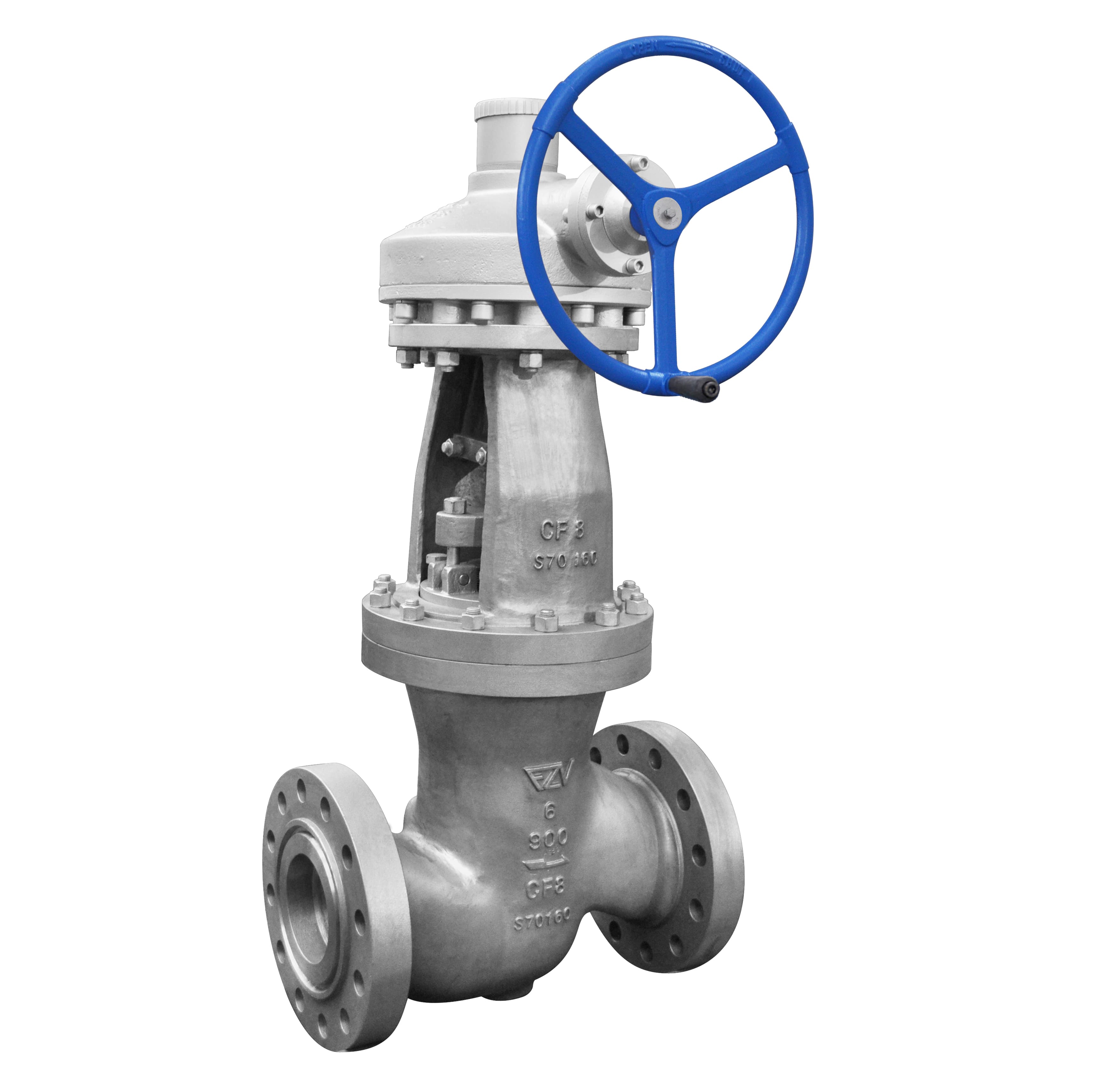

Globe Valve | Pressure Seal Globe Valve, Bellow Seal Globe Valve, Throttle Valve |

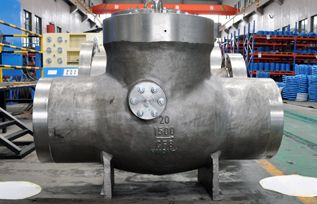

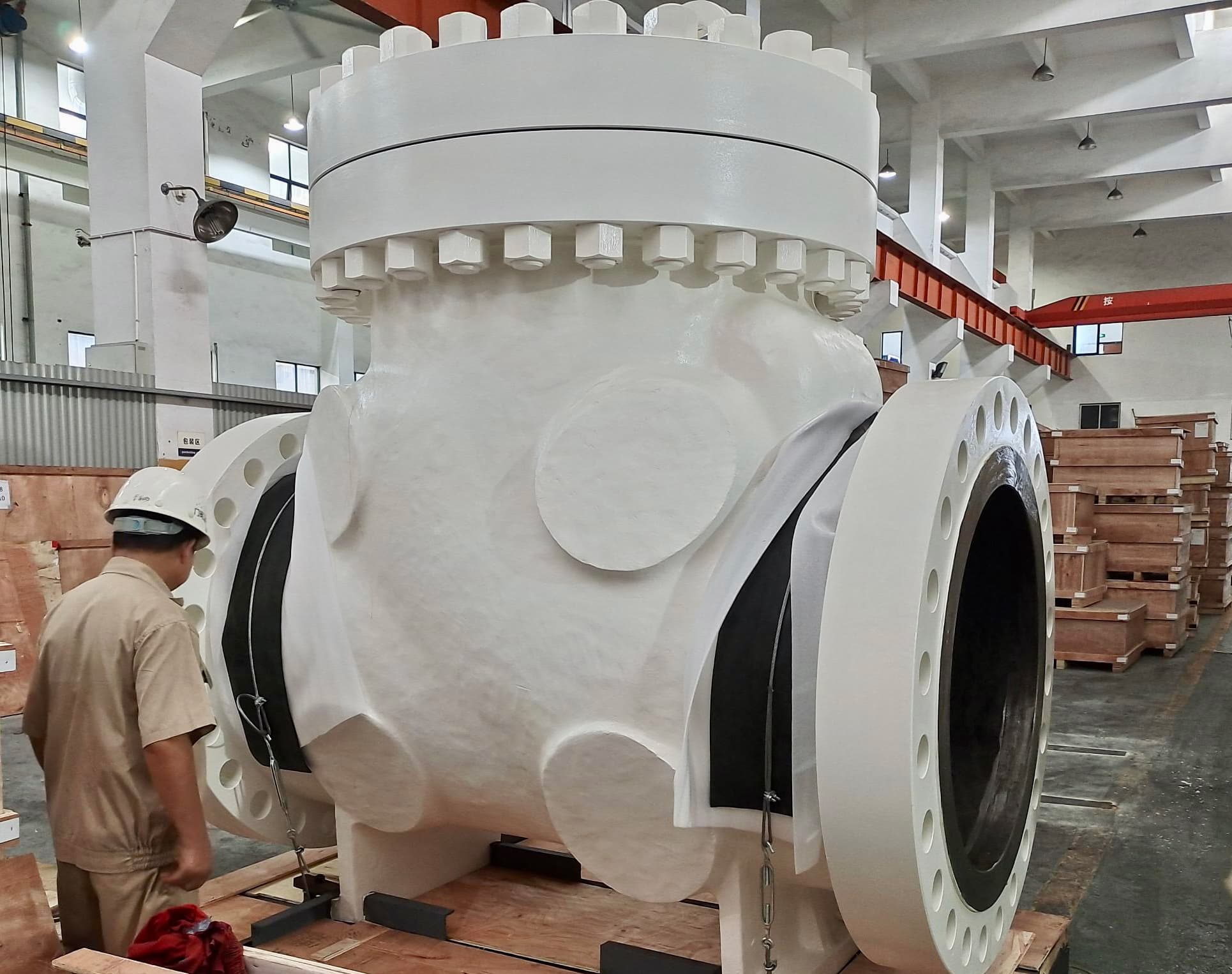

Check Valve | Swing Check Valve, Nozzle Check Valve, Wafer Check Valve, Pressure Seal Check Valve |
Plug Valve | Pressure Balance Plug Valve, Lubricated Plug Valve, Twin Plug Valve |

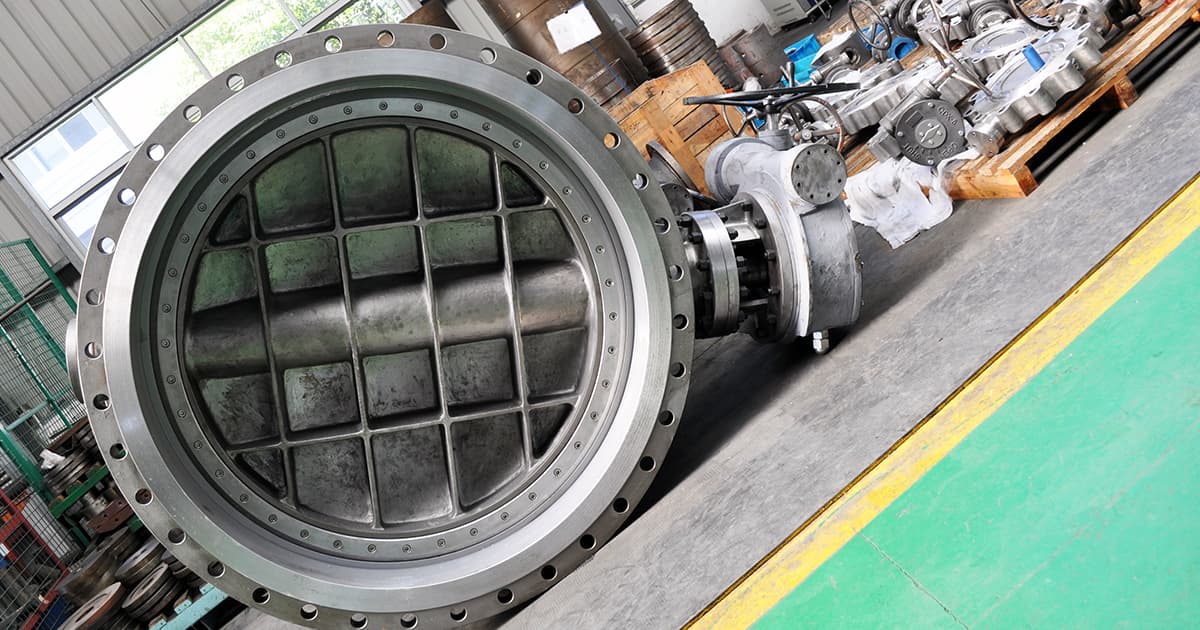

Butterfly Valve | Triple Eccentric Butterfly Valve |

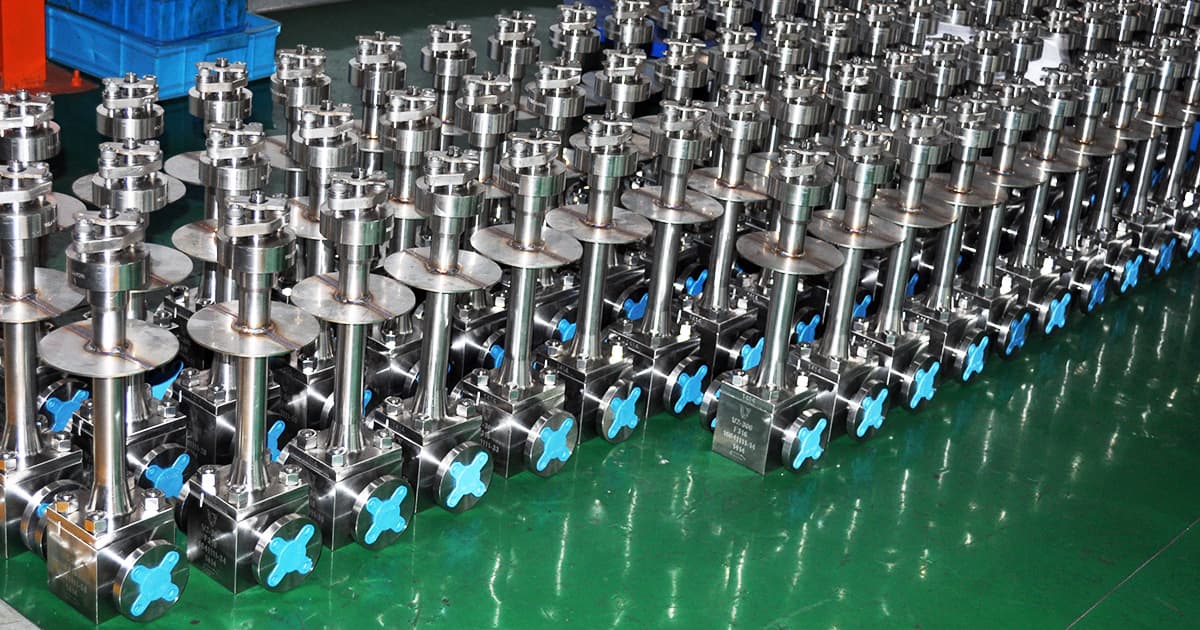

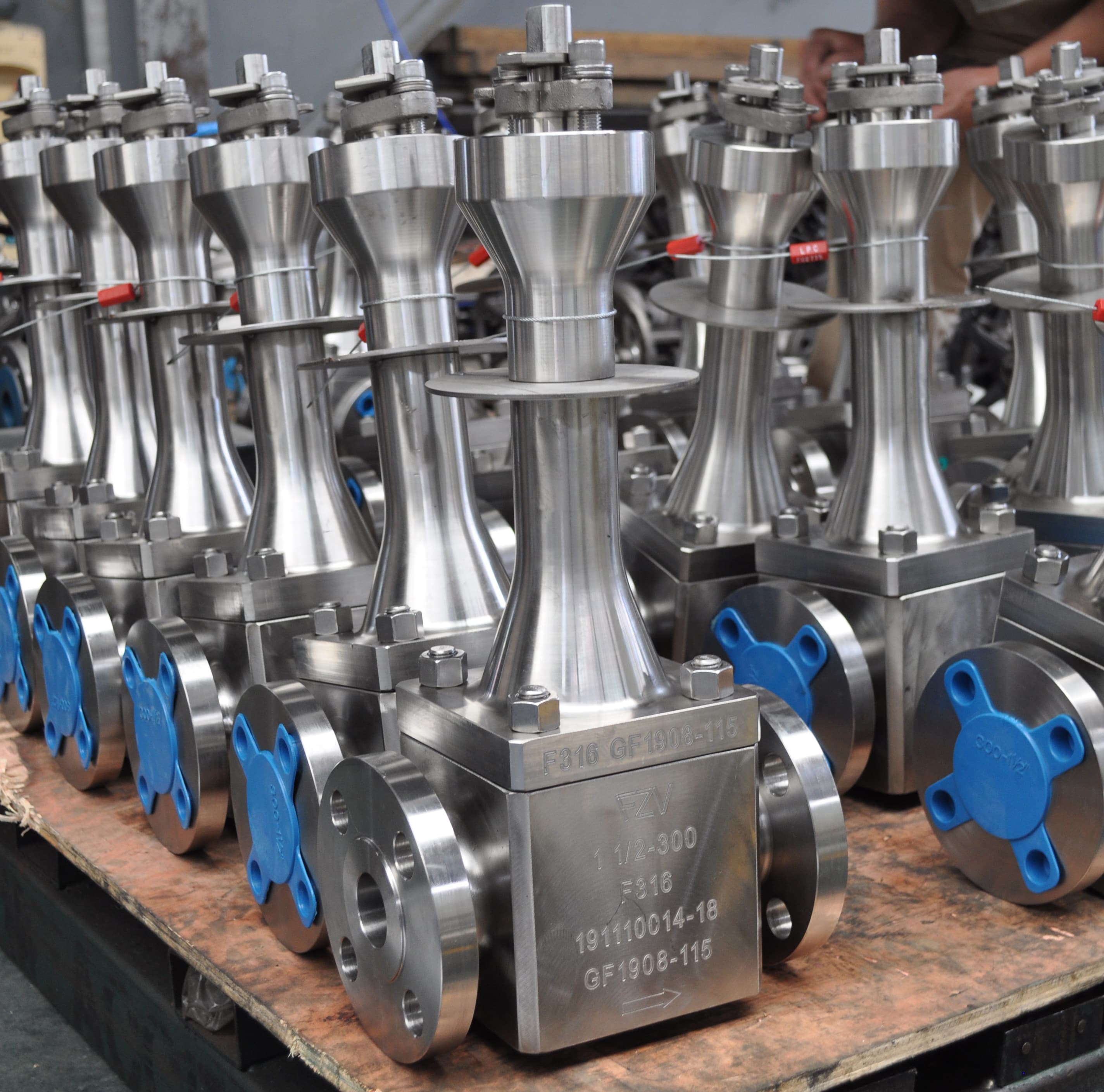

Cryogenic Valve | Cryogenic Ball Valve, Cryogenic Gate Valve, Cryogenic Globe Valve, Cryogenic Butterfly Valve, Cryogenic Check Valve |

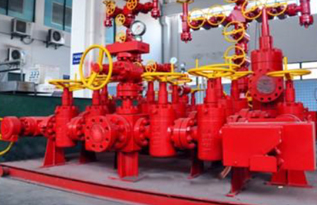

API 6A Product | API6A Ball, Gate, Globe, Choke, Check valves, Mud valve, Manifold, Christmas Tree Wellhead Equipment |
RANGER manufactures a wide range of trims, seats and seals in accordance with design standards.
Trim Material | A105 + ENP, LF2 + ENP, F304, F316, F51, F55 | ||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Seat & Seal Material |
|
||||||||||||||||||||||||
Others |
|

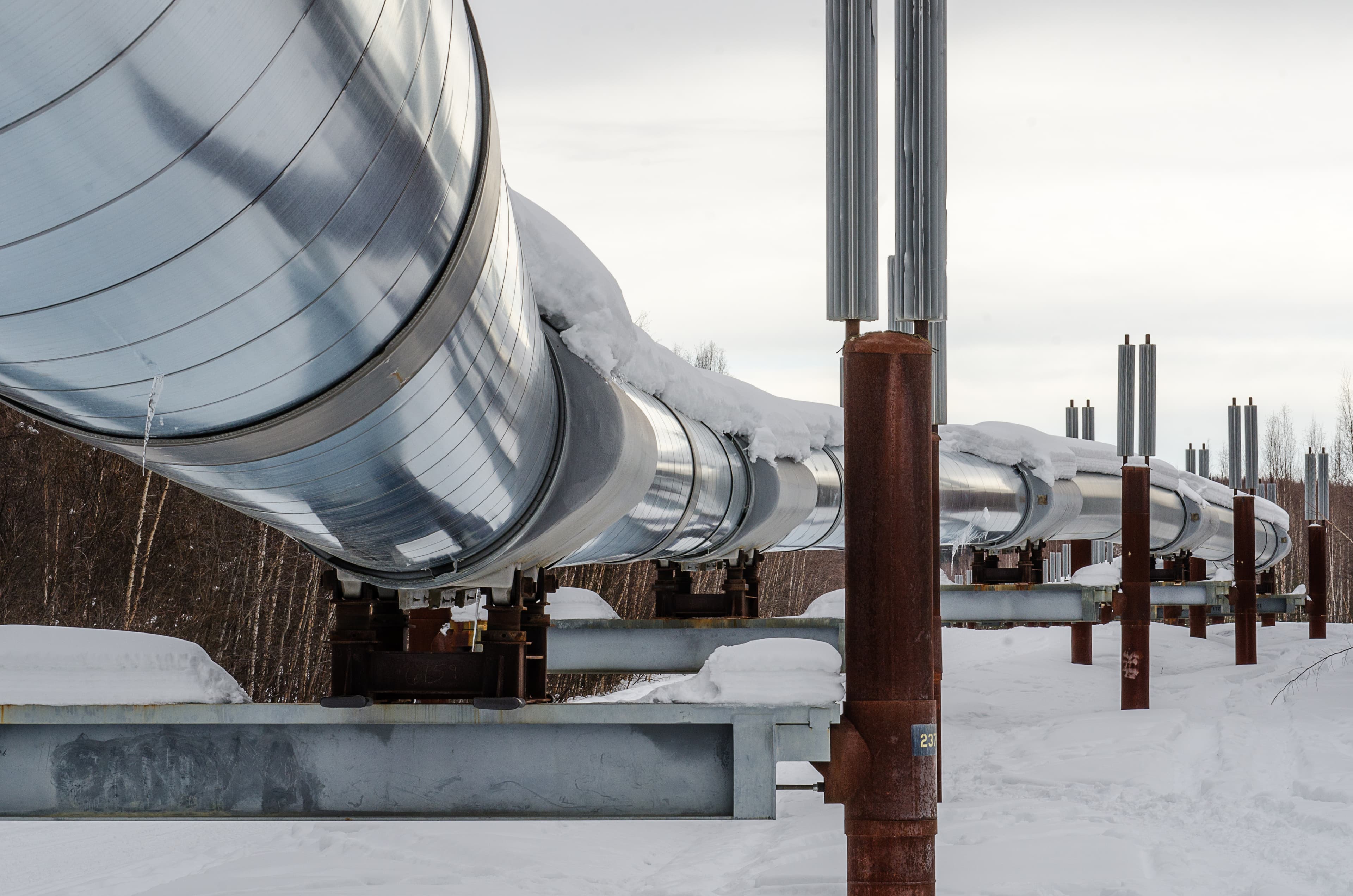

Key standards and product information for oil and natural gas pipelines.
Standard | API, ANSI, ASME, ASTM, MSS, ISO, BS | ||||||
---|---|---|---|---|---|---|---|
Size & Pressure Range |
|
||||||

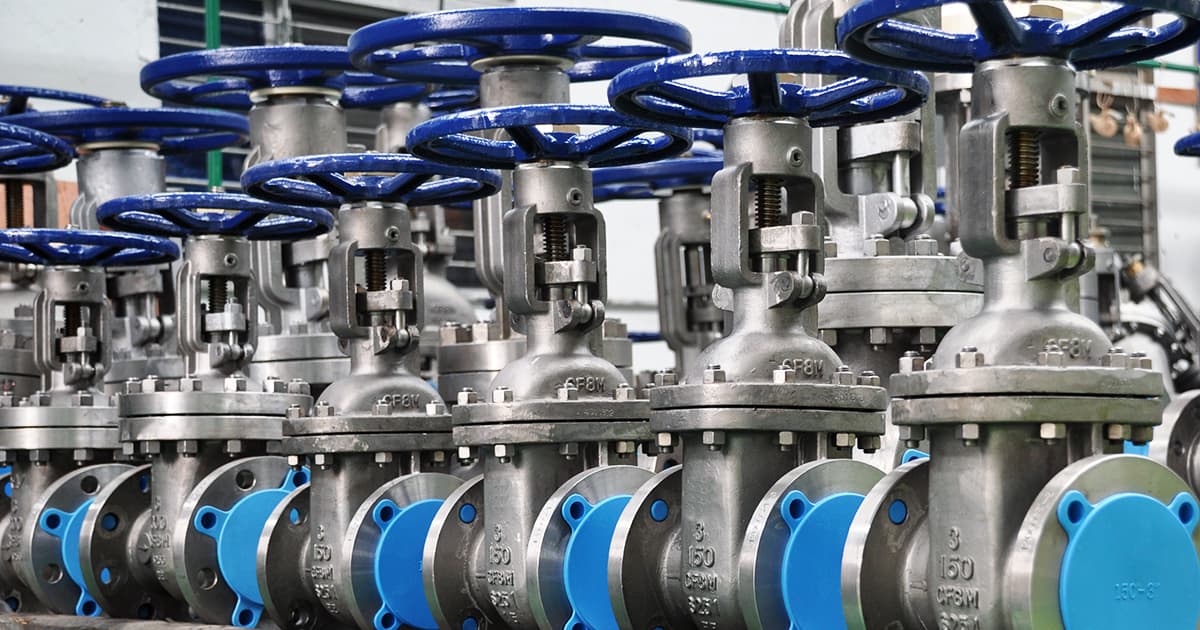

Casting Material | WCB,LCB, WC6, WC9, C5, C12, CF3, CF3M, CF8, CF8M, C95500, 4A, 5A, Inconel 825/625 | ||||||
Forging Material | A105, LF2, F11, F12, F304, F321, F347, F316, 304L, 316L, C61900, F51, F53, F55, Inconel |
Overview of products manufactured for wellhead applications.
Standard | API 6A/API 16C and other relevant specs |
---|---|
Size & Pressure Range | 1-1/16”(46mm)~ 13-5/8”(350mm) 2,000 psi – 15,000 psi |
Casting Material | A487 4C,A487 Gr9,CA-15 , etc. |
Forging Material | AISI 4130, AISI 4135, AISI 4140, AISI 1040, AISI 1045, 410SS, 17-4PH, Inconel 718, Inconel 625 |
